Spindle Repair & Rebuild Process

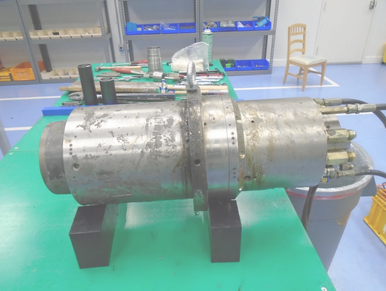

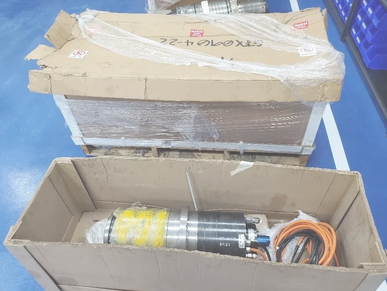

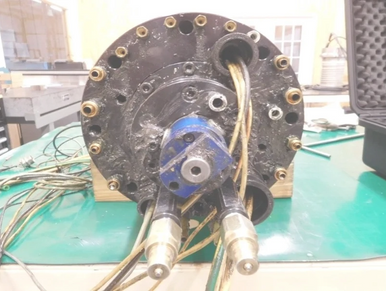

Failed Spindles are received to one of our machine service centers.

Document spindle type, maker,

serial number. Assessments of

assembled parts conditions are

checked for damages and crack.

Photography for whole spindle are

taken.

Our team performs a comprehensive

examinations, including run-out,

clamping force, encoder condition,

voltage and electric current,

motor condition, RTD sensor,

shaft taper, and bearing noise.

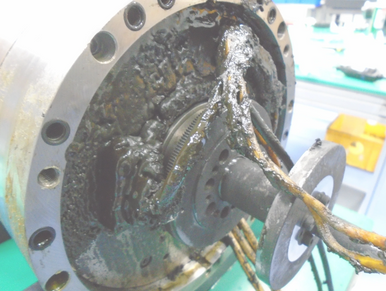

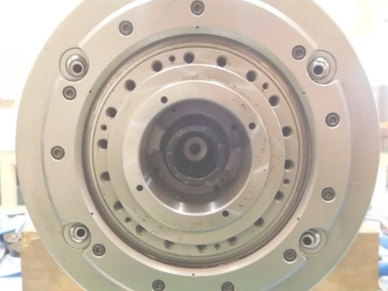

We carefully disassemble and

examine all parts for any

indications of  wear and damage,

incorrect fitting or sizing. This

includes spindle failing and

causal analysis, checking bearing

journals, bores, shoulders,

shafts, caps, and spacers.

We'll provide you a detailed quote for spindle repair/rebuild after disassembly and assessment. Our fair pricing ensures an accurate and competitive estimate.

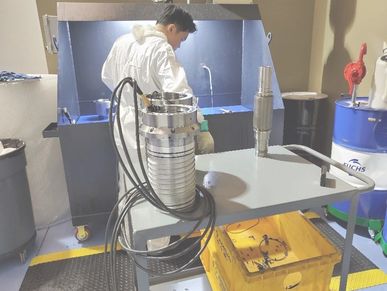

After disassembly, all parts are

washed through our washing

unit. Coolant lines, air and oil

lines, chip and foreign objects,

rust removal, and clean washing

are performed.

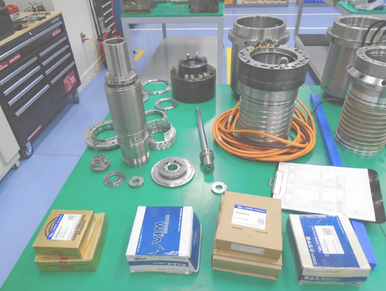

Our replacement process

confidently ensures that all

parts are replaced or reconditioned

to meet the OEM’s specifications,

resulting in a performance that

is ‘like new.’ We sleeve and

machine the housings, chrome

and regrind the shafts, and

balance all spindle components.

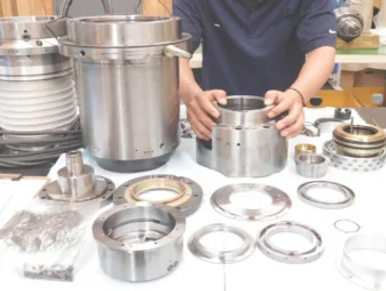

Our team carefully assembles

your spindle. Performing

precision balance, inspect and

follow process specification.

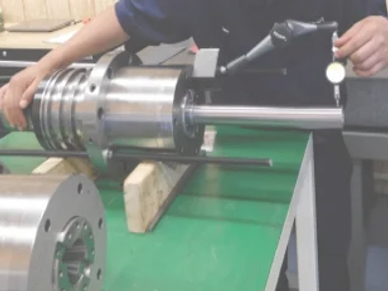

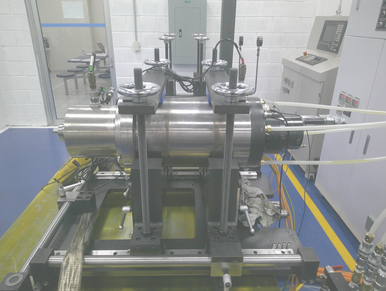

Static check and test includes:

1. Tool clamping force
2. Collet projection length
3. Test bar runout (50mm)
4. Test bar runout (300mm-X,Z)
5. Test bar runout (300mm-Y,Z)
6. Spindle cross section runout
7. Taper face runout.

1. Siemens Running Tester (Built-In)
2. Fanuc Running Tester (Built-In)
3. Belt Running Tester

• RPM Range : 1,000 - 2,000 - 3,000 ~ tested through Max RPM
• Vibration Balancing Test
• Noise Spindle Running Temperature
• Encoder Test

Final inspection is performed for

quality control. All condition of

collet and lip seal wear outs are

re-inspected. Appearance and

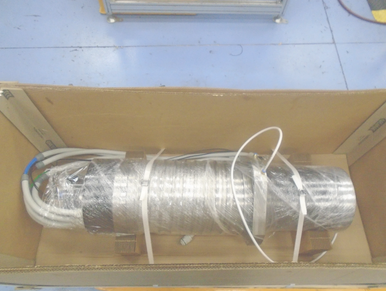

packing conditions are checked.

Once we finish rebuilding your

spindle, we’ll send it back to you

with performance that’s as good as

new. We’ll also provide you with

testing files that include a spindle

checklist, encoder testing, analysis,

and pictures.
